EZFF, EZNF, EZSPN EZ CHANGE QUICK CONNECTION SYSTEM

Design Features

• Nozzles can be changed in seconds without tools

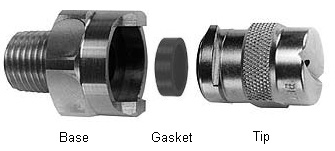

• Three part nozzle, base, gasket and interchangeable tip
• Exclusive ramped engagement for efficient, automatic alignment
• Threaded adaptors willl accommodate other standard BETE nozzles. Shut-off plugs are also available
• Sanitary EZs are available with weld connection and no knurling

Spray Characteristics

• Available in six standard tips: EZFF, EZNF, EZSPN, EZTF, EZWL and EZWT

Spray Angles:
EZFF: 105° and 145°
EZNF: 0°, 15°, 30°, 50°, 65°, 80°, 90°, 110° and 120°
EZSPN: 15°, 25°, 35°, 40° and 50°

Flow rates: 0.02 to 42.5 gpm (0.051 to 125 L/min)
